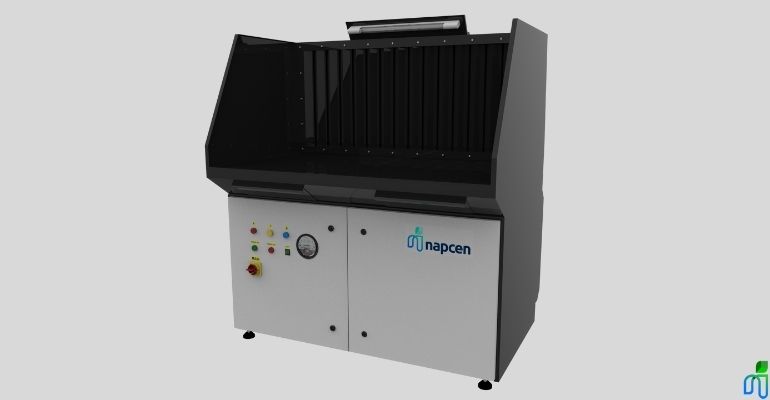

A Grinding Downdraft Table is an industrial air filtration system specifically designed to capture dust, fumes, and fine particulates generated during grinding, sanding, or polishing operations. It features a perforated work surface with integrated downward airflow that pulls contaminants directly into a built-in filtration unit, preventing airborne dispersion in the workspace.
NAPCEN grinding downdraft tables use high-efficiency filters, such as cartridge or bag filters, to effectively clean the air. Widely used in metalworking, woodworking, fabrication, and automotive workshops, these tables improve indoor air quality, enhance worker safety, reduce fire and explosion risks, and ensure compliance with environmental and occupational health regulations.
🢚 Air Handling Volume – 600 to 3000 CFM
🢚 Working Height – 650 to 900 mm
🢚 Fan Power – 2HP to 10 HP
🢚 Motor Speed – 1440 rpm to 2880 rpm
🢚 Power supply – 3 Phase / 50 HZ
🢚 Filter Cleaning – Pulse Jet / Automatic manual
🢚 Noise Level – 75 dBa
🢚 Efficiency – 99.9%
🢚 Wood industries
🢚 Powder coating industries
🢚 Sandblasting, Grit & shot blasting
🢚 Belt Conveyors Shake out conveyor
🢚 Bins & Bucket elevators
🢚 Floor gate, Grinders
🢚 Mixers, foundry
🢚 Dust Collection for Grinding and Buffing
🢚 Machin For Portable or Stationary Applications
🢚 Food Processing Industries (Grain Handling)
🢚 Stainless steel
🢚 Mild steel
🢚 M.S with Epoxy coated
🢚 Polypropylene and polyethylene
🢚 FRP - lined mild steel
🢚 Nickel alloys and Titanium
🢚 Pulse Valve
🢚 Filter Bag
🢚 Cartridge Filter
🢚 DP Gauge
🢚 Spinel Dust
🢚 Suction Hood
🢚 Timmer
🢚 Work Light Kit
